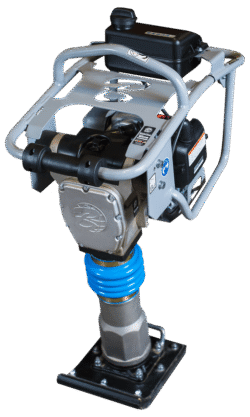

BT1000H Tamping Rammer

At over 2200 Pounds of Compaction Force, Bartell's Light-Weight Rammer Still Packs a Punch.

$4,440.00unit
Member: $$4,129.20 / unit

At over 2200 Pounds of Compaction Force, Bartell’s Light-Weight Rammer Still Packs a Punch.

Weight 64 kg
Brand

Description

Sometimes a lighter touch does the trick! The BT1000 is our smallest tamping rammer, ideal for light compaction applications, especially in confined areas such as trenches, and when breaking down more cohesive soils.

  • Handle height is adjustable for operator comfort and safety
  • Powered by Honda GX100 engine with diaphragm carburetor
  • Heavy-duty throttle control provides longer Equipment lifespan
  • Dual air filtration keeps dust and debris out of the engine
  • Integrated fuel valve provides more a reliable start
  • Heavy shock-mount system reduces hand/arm vibration and improves operator comfort
  • Protective roll cage prevents damage
  • Loading and unloading is a one-person job thanks to an Integrated roller and lifting Handle

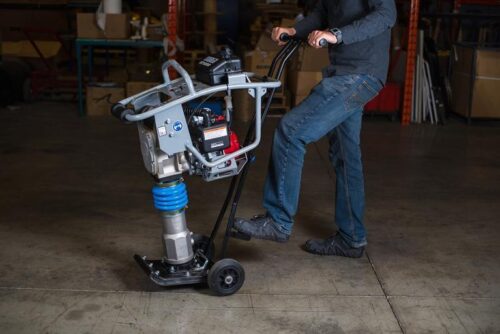

  • Transport dolly included for safe and easy mobility



EngineHonda GX100
Power Output2.8hp (2.1kW)
RPM3600
Fuel Capacity0.7 gallon (2.65L)
Starting SystemRecoil
Jumping Stroke2.8″ (70mm)
Compaction Force2205lbf / 9.5kN (1000kgf)
Length27″ (680mm)
Width14″ (350mm)
Height41″ (1030mm)
Weight142 lbs (64kg)
Plate Size10″ x 10″ (250mm x 250mm)
