Nueva® 75 Wall

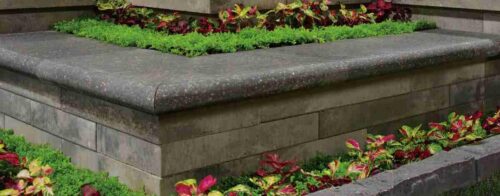

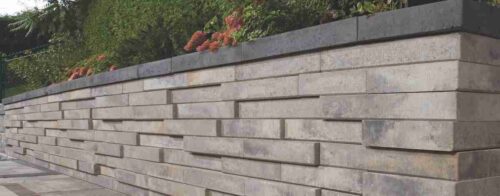

The Nueva® 75 Wall system embodies the same clean lines, smooth face, and colour palette as our Nueva® 150 wall, but in a solid, double-sided ashlar height system. Ideal as an accent band or decorative wall system, Nueva® 75 is a perfect complement to your contemporary landscape design.

Recommended Use: Commercial, Garden Wall, Residential, Retaining Wall

FINISH: SMOOTH

MATERIAL: CONCRETE

Price Class: Standard Colour

Additional Features: Built-in Interlock

	Bundle Specifications					Per Section Specifications
BUNDLES	Layers	Area sq.ft.	Lin.Ft.	Pieces	Weight lbs	SECTIONS	Area sq.ft.	Lin.Ft.	Pieces	Weight lbs
Combo Bundle 16″ Unit 20″ Unit 20″ End Unit 24″ Unit	6	19.5	78	12 12 12 12	2589	Layer	3.3	13	2 2 2 2	432
Coping Bundle Coping Unit Coping End Unit	8	11.6	47.2	16 8	1872	Layer	1.5	5.9	2 1	234

Sizes

16″ Unit

Width 400 mm (15.75″)
Height 75 mm (2.95″)
Depth 300 mm (11.81″)

20″ Unit

Width 500 mm (19.69″)
Height 75 mm (2.95″)
Depth 300 mm (11.81″)

20″ Corner/End Unit

Width 500 mm (19.69″)
Height 75 mm (2.95″)
Depth 300 mm (11.81″)

24″ Unit

Width 600 mm (23.62″)
Height 75 mm (2.95″)
Depth 300 mm (11.81″)

Coping

Width 600 mm (23.62″)
Height 75 mm (2.95″)
Depth 340 mm (13.38″)Packaged with Coping End Units. See Packaging Table.

End Coping

Width 600 mm (23.62″)
Height 75 mm (2.95″)
Depth 340 mm (13.38″)

Packaged with Coping Units. See Packaging Table.
